Tata Wash Equipment - Auto Tyre Changer
CONTACT US TO KNOW MORE

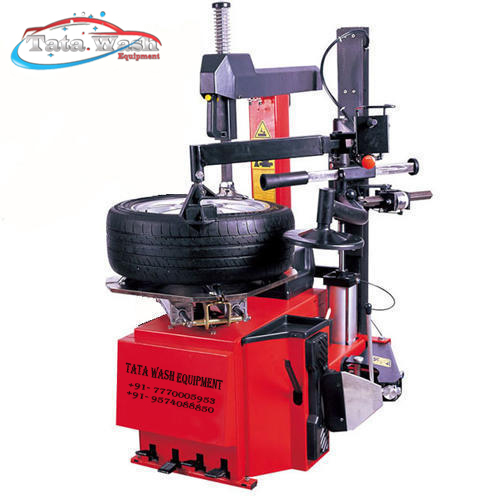

TWE Auto Tyre Changer comes with Tubeless Tyre Inflation System, Wheel Protection Package,
Wheel Clamping System, press-cast aluminum pedals, Powerful Bead Breaking System, Smart tool head etc.
- Rigid Vertical and Horizontal Post
- Swing arm with manual locking device for space saving operation.
- Strengthened vertical post is not subject to flexion during heavy work operation.
-
Wheel Clamping System:
Rigid self-centering chuck with precise inching sliding locating the desired clamping size in one time.
Reversible direction of turntable gives operators the ability to back up in the event of turntable stall during stubborn bead installation to reduce the risk of tire damage.
Two-speed turntable available -
Tubeless Tyre Inflation System:
Integrated air tank inside the vertical post for space saving.
The blast inflation system is activated by a single pedal command with two positions.
Position I: standard inflating mode.
Position 2: bead seating, by means of a large quantity of pressurized air passing through nozzles built into the chuck slides
Pressure release button on inflation gauge to discharge exceed pressure.
- Smartool Tool Head
- Radian design guarantees that demounting and mounting are always carried out in an optimum way and in the utmost safety.
- Alloy material with special surface treatment ensures the strength and life of use.
-
Maintenance-free Gear Box:
Special grease lubrication gives efficient heat dissipation for longer lift of use.
High-strength alloy worm and worm gear with accurate matching and conformity transfer the stable and powerful working force onto the turntable. -
Wheel Protection Package:
Complete with kit of plastic protections to prevent damage to the most delicate rims.
-
Powerful Bead Breaking System:
Stainless steel cylinder against any rust
Double -acting pneumatic cylinder generates powerful 2,700kg bead breaking force loosen hard wheel with ease.
Adjustable bead breaking shoe with precise radian allows tyre beads to be accurately loosened. -
Pedal Assembly:
Pedals in press-cast aluminum
Removable front cover of pedal assembly for the convenience of maintenance and service.
| Rim clamping from outside | 11”-20” |
| Rim clamping from inside | 12”-24” |
| Max. wheel diameter | 930mm |
| Wheel width | 3”-12” |
| Operating pressure | 8-10 bar |
| Motor power | 0.75/1.1kw |
| Noise level | < 75dB |
| Weight | 270kg |
| Packing size | 980x760x1010mm |
